Description

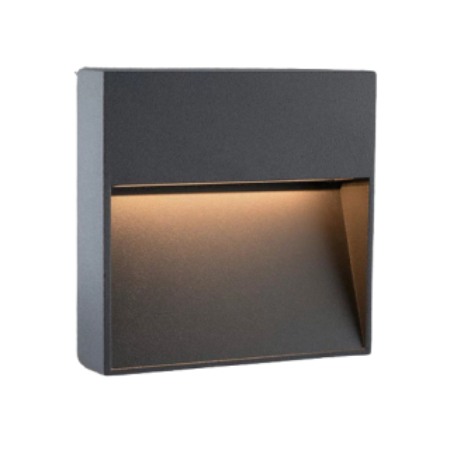

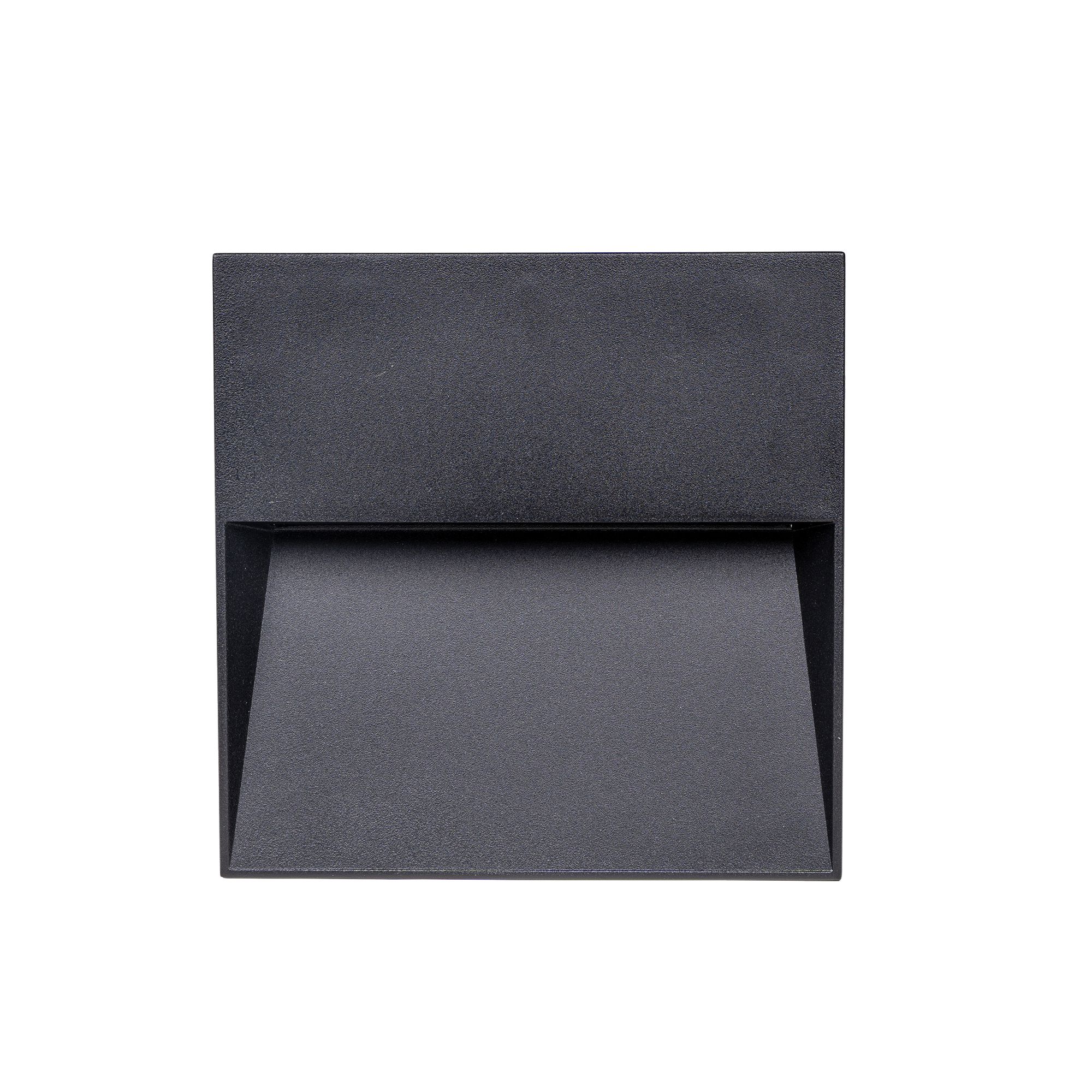

LED wall ramp light is designed for ramp wall integration and offers various design possibilities in architectural illumination.
Features and benefits:
▪ Rectangle front cover
▪ 110-120V or 220-240Vac 50/60Hz input.
▪ Light source: 36pcs or 48pcs 20-25LM 2835SMD LED.
▪ Lighting fixture luminous flux:680LM for 8W and 960 for 12W
▪ CRI(Ra)>80 (for 3000-6500K only).
▪ Color: 3000-6500K.
▪ Honey comb-type clear tempered glass light window.
▪ Optional Lamp body color: Mat Light grey, Mat black, Mat white.
▪ Easy wall recessed install by mounting sleeve.
▪ ABS mounting sleeve(also named Pre-buried box) included.
▪ IP classification: IP65
Material Specifications:
| Housing | 12 Die-casting grey powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B |
| Front Cover | 12 Die-casting aluminum PT877U liquid coated , T=20-30μm Adhesion of ISO class 1/ASTM class 4B |
| Gasket | Molding shaped silicone seal |
| LED | 48pcs 2835 SMD LED, 20-25LM/LED |
| Driver | Tridonic Constant voltage output |
| Operating Temperature | -20℃~55℃ |
| Mounting Sleeve(Incl.) | PVC |
