Description

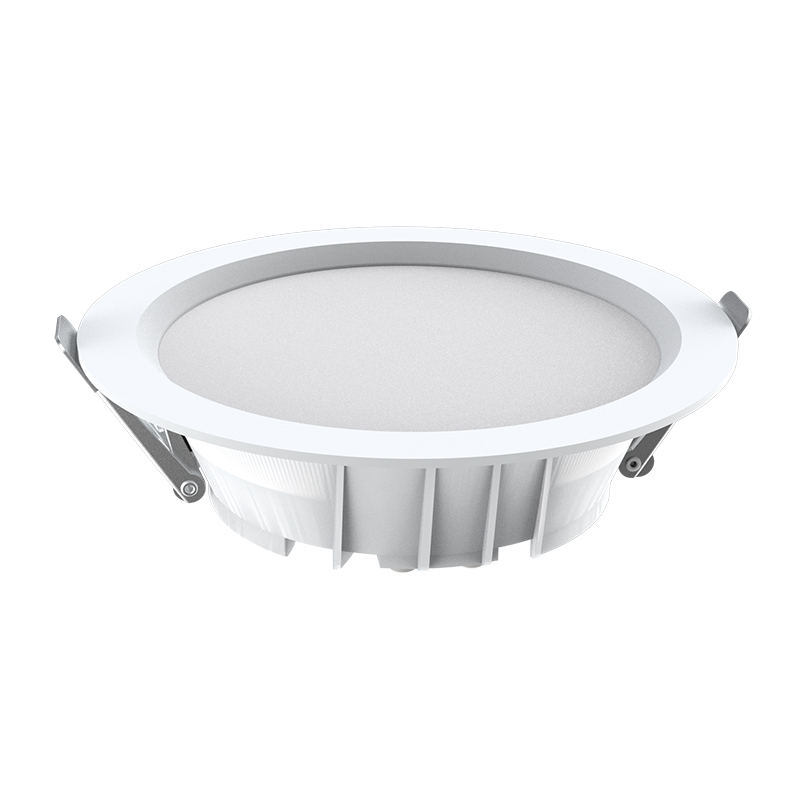

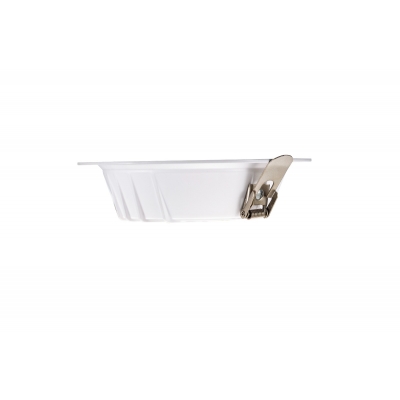

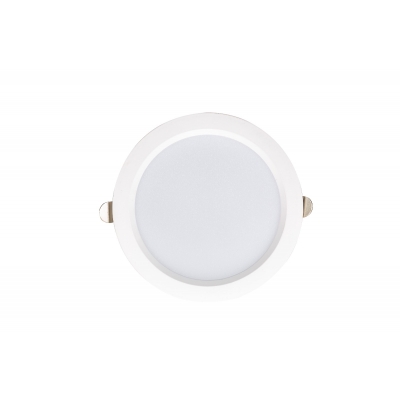

EMMA Downlight Round recess mounted range of LED ceiling lights is a perfect fit for varied lighting applications. The die cast aluminum housing is ideal for better thermal management. High lumen output / Different wattage & CCT options make this luminaire versatile for superior glare free indoor lighting solutions.
Product Description
• LED ceiling recessed back-lit panel light – Indoor luminaire with soft uniform Light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High lumen output.
• Ingress Protection: IP44
• Available in CCT, 3000K, 4000K, 6000K.
Product Benefits
• Flexible deployment options with a wide spectrum of applications.
• Quick & simple installation.
• Diffuser upto 85% transmission level for better efficiency and higher lumens output.
Area of Application

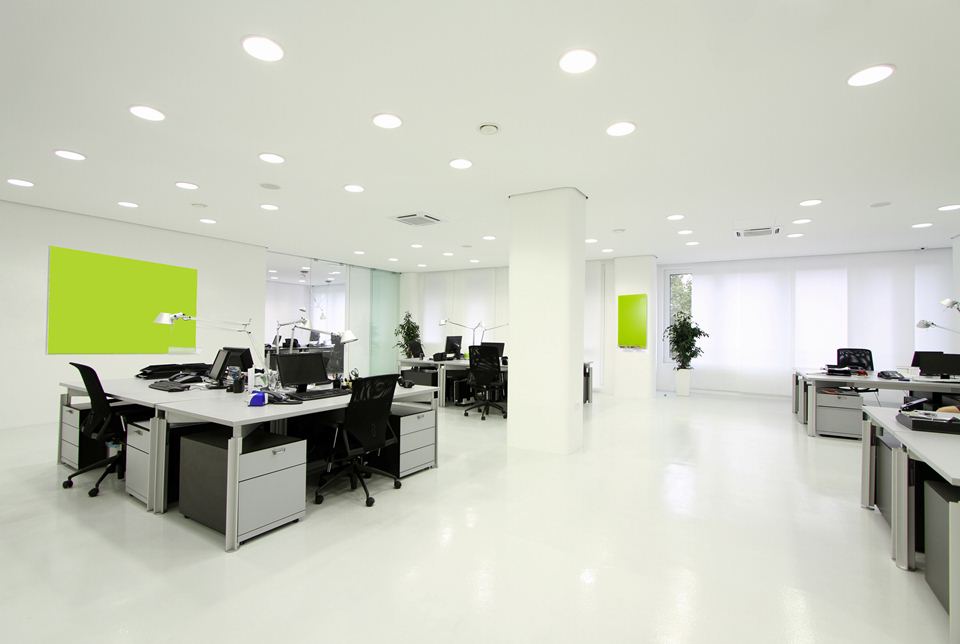

Lobbies & Foyers, Retail Sector, Corporate Office, Airports & Hospitals, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers.
Available Finish
White epoxy polyester powder coating.
Specifications:
| Model | LZ-1121C-7 | LZ-1121C-12 | LZ-1121C-24 |
| Power | 7W | 12W | 24W |
| Input Voltage | 220-240VAC | 220-240VAC | 220-240VAC |
| Driver | LIFUD/ Philips | LIFUD/ Philips | LIFUD/ Philips |
| Beam | 120° | 120° | 120° |
| CRI | >90 | >90 | >90 |
| Efficiency | 100lm/w | 120lm/w | 120lm/w |
| CCT | CCT (3000K/4000K/6000K) | CCT (3000K/4000K/6000K) | CCT (3000K/4000K/6000K) |
| Housing materials | Aluminum+PC cover | Aluminum+PC cover | Aluminum+PC cover |
| Housing Color | White | White | White |
| Dimension | Ø90*H38mm | Ø120*H38mm | Ø180*H41mm |
| Cut hole size | Φ75mm | Φ105mm | Φ150mm |
