Magna

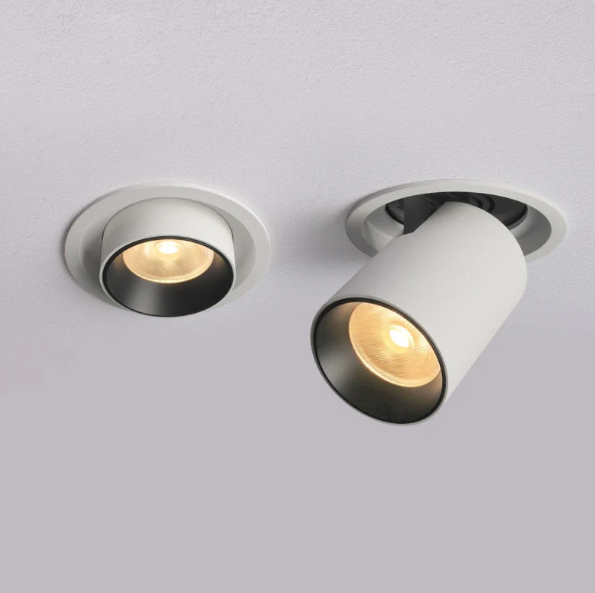

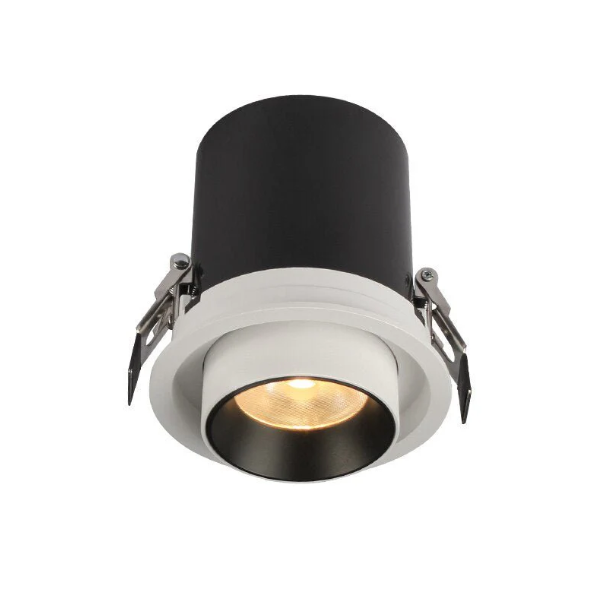

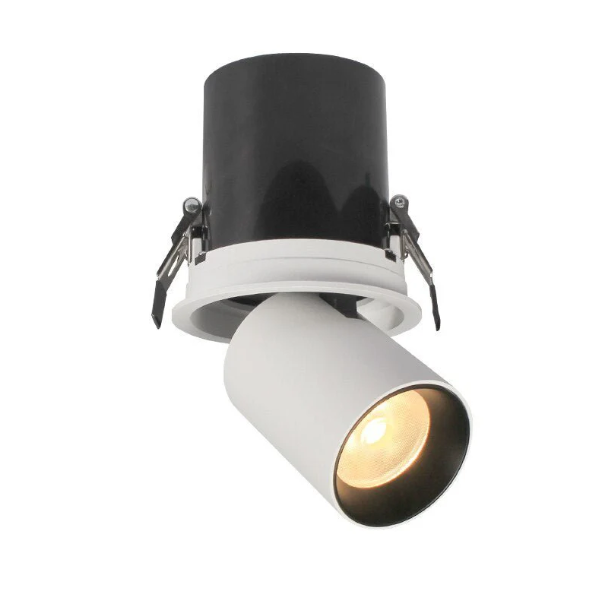

Pull-out and adjustable for recessed installation in the ceiling‭. ‬Housing made of die-casting aluminum with highly pure powder coating‭. ‬Available in white‭ (‬RAL 9003‭), ‬black‭ (‬RAL 9005‭) ‬and grey aluminum‭ (‬RAL 9006‭) ‬color‭. ‬It mounts COB led‭. ‬Reflector in vacum aluminum plated PC‭. ‬UGR＜21‭. ‬The led driver is included and external to the fixture‭. ‬Fixing system by flat springs‭. ‬The lumen output is based on 3000K‭ (‬CRI80‭) ‬led‭.‬

Pull-out spot Magna -R Spec sheet

Categories: , ,

Description

CodePower (W)Lumen (lm)Beam Angle (°)Input Current   (mA)Power FactorCRICut OutCCT (K)ColorDimmingLife time
LZ-12712-12R1296012/24/38°  92903000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12713-12R1296012/24/38°  92904000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12714-12R1296012/24/38°  92905000WH/BK/GYOn-Off/0-10V/Dali50000hrs
CodePower (W)Lumen (lm)Beam Angle (°)Input Current   (mA)Power FactorCRICut OutCCT (K)ColorDimmingLife time
LZ-12712-25R25200012/24/38°  921203000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12713-25R25200012/24/38°  921204000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12714-25R25200012/24/38°  921205000WH/BK/GYOn-Off/0-10V/Dali50000hrs
CodePower (W)Lumen (lm)Beam Angle (°)Input Current   (mA)Power FactorCRICut OutCCT (K)ColorDimmingLife time
LZ-12712-12S1296012/24/38°  9290*903000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12713-12S1296012/24/38°  9290*904000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12714-12S1296012/24/38°  9290*905000WH/BK/GYOn-Off/0-10V/Dali50000hrs
CodePower (W)Lumen (lm)Beam Angle (°)Input Current   (mA)Power FactorCRICut OutCCT (K)ColorDimmingLife time
LZ-12712-25S25200012/24/38°  92120*1203000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12713-25S25200012/24/38°  92120*1204000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12714-25S25200012/24/38°  92120*1205000WH/BK/GYOn-Off/0-10V/Dali50000hrs
CodePower (W)Lumen (lm)Beam Angle (°)Input Current   (mA)Power FactorCRICut OutCCT (K)ColorDimmingLife time
LZ-12712-24GR12*2192012/24/38°  92175*903000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12713-24GR12*2192012/24/38°  92175*904000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12714-24GR12*219212/24/38°  92175*905000WH/BK/GYOn-Off/0-10V/Dali50000hrs



CodePower (W)Lumen (lm)Beam Angle (°)Input Current   (mA)Power FactorCRICut OutCCT (K)ColorDimmingLife time
LZ-12712-50GR25*2400012/24/38°  92120*2303000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12713-50GR25*2400012/24/38°  92120*2304000WH/BK/GYOn-Off/0-10V/Dali50000hrs
LZ-12714-50GR25*2400012/24/38°  92120*2305000WH/BK/GYOn-Off/0-10V/Dali50000hrs

Additional information

Models

Magna-R 12, Magna-R 25, Magna-S 12, Magna-S 25, Magna-GR 24, Magna-GR 50
